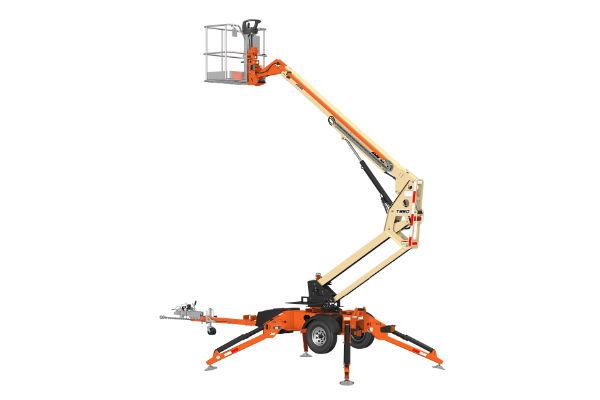

Towable manlift

Performance

• Platform Height …………………………………..…………. 34-ft 6.25-in / 10.5-m
• Horizontal Outreach ……………………………………..………. 18-ft 9-in / 5.7-m
• Centerline to Platform Edge …………………………………………. 20-ft / 6.1-m
• Swing ………………………………………………. 410 Degrees Non-Continuous
• Platform Capacity …………………………………………………. 500-lb / 227-kg
• Platform Capacity w/Rotator (Optional) ………………………… 440-lb / 200-kg
• Material Hook Capacity …………………………………………… 500-lb / 227-kg
• Platform Rotator ………………………………………………. 90 Degrees Manual
• Weight* …………………………………………………………. 3,600-lb / 1,633-kg
• Leveling Capability …………………………………………………….. 11 Degrees
• Max. Ground Bearing Pressure …………………………….. 23 psi / 1.62 kg/cm²
• Towing Speed Rating ………………………………………… 65 mph / 105 km/h
• Tongue Weight* ……………………………………………………. 250-lb / 114-kg
• Max Gradability …………………………………………………………………. 20%
• Hydraulic Reservoir ………………………………………………. 4.0 gal / 15.14 L

Power Source

• DC Power ……………………………………………………………………. 24V DC
• Gasoline Engine ……………………………………………. Honda GX390 11.7hp

Tires

• Standard …………………………………..…………… ST215/75 R14 Pneumatic

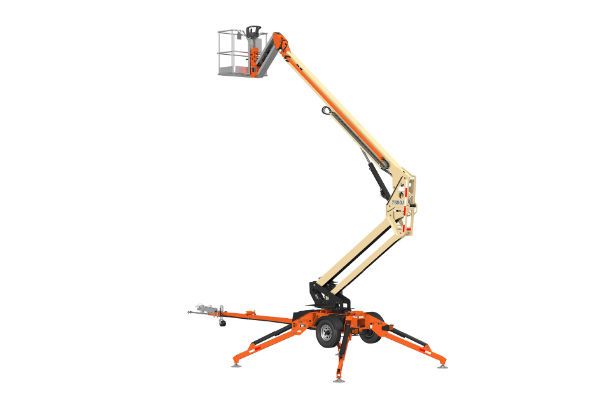

35′ Towable manlift
