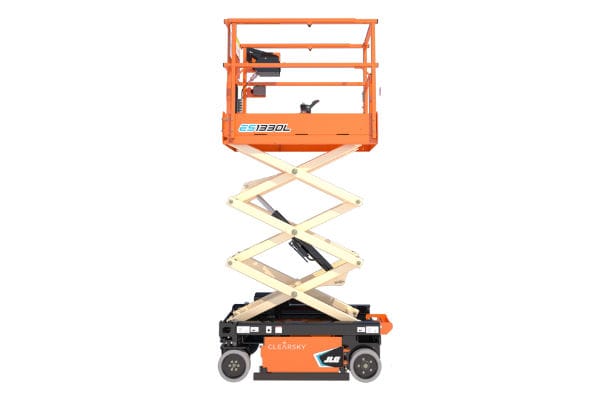

Electric scissor lift

Performance

• Platform Height (Elevated)
  • Indoor ………………………………………………………………………….. 13-ft / 3.8-m
  • Outdoor ……………………………………………………………………….. 13-ft / 3.8-m
• Platform Capacity
  • Indoor …………………………………………………………………….. 500-lb / 227-kg
  • Outdoor ………………………………………………………………….. 500-lb / 227-kg
• Capacity on Platform Extension
  • Indoor …………………………………………………………………….. 250-lb / 115-kg
  • Outdoor ………………………………………………………………….. 250-lb / 115-kg
• Number of Occupants
  • Indoor ………………………………………………………………………………………. 2
  • Outdoor ……………………………………………………………………………………. 1
• Lift / Lower Time (No Load)
  • Indoor …………………………………………………………………….17/17 seconds
  • Outdoor ………………………………………………………………… 17/17 seconds
• Lift / Lower Time (Rated Load)
  • Indoor …………………………………………………………………… 20/16 seconds
  • Outdoor ………………………………………………………………… 20/16 seconds
• Maximum Drive Height
  • Indoor ………………………………………………………………….. Fully Elevated
  • Outdoor ……………………………………………………………….. Fully Elevated

• Weight
  • Indoor ……………………………………………………………… 1,984-lb / 900-kg
  • Outdoor ………………………………………………………….. 1,984-lb / 900-kg
• Max. Ground Bearing Pressure
  • Indoor …………………………………………………………. 119 psi / 8.3 kg/cm²
  • Outdoor ………………………………………………………. 119 psi / 8.3 kg/cm²
• Drive Speed (Lowered)
  • Indoor ………………………………………………………….. 2.4 mph / 3.8 km/h
  • Outdoor ……………………………………………………….. 2.4 mph / 3.8 km/h
• Drive Speed (Raised)
  • Indoor ………………………………………………………..  0.5 mph / 0.8 km/h
  • Outdoor ……………………………………………………… 0.5 mph / 0.8 km/h
• Gradeability
  • Indoor …………………………………………………………………………… 25%
  • Outdoor ………………………………………………………………………… 25%
• Max Tilt Rating (Side-to-Side)
  • Indoor ……………………………………………………………..  1.75 Degrees
  • Outdoor …………………………………………………………….. 1.5 Degrees
• Max Tilt Rating (Fore and Aft)
  • Indoor ………………………………………………………………….. 3 Degrees
  • Outdoor ……………………………………………………………….. 3 Degrees
• Turning Radius (Inside)
  • Inside ………………………………………………………………………….  Zero
  • Outside ……………………………………………………………………….. Zero
• Turning Radius (Outside)
  • Inside ………………………………………………………………. 55-in / 1.4-m
  • Outside ……………………………………………………………. 55-in / 1.4-m

Power

• Batteries ………………………………………………………. 2 x 12V 105 amp-hr
• Charger ………………………………………….. 27 Amp (Universal Algorithm)
• Drive ……………………………………………………………………… 24V Electric

Tires

• Standard ………………………………………………. 10 x 3-in / 255 x 75-mm
• Brakes ……………………………………………………………. Electric / Friction

Hydraulic System

• Capacity ………………………………………………………………. 1.3 gal / 5 L
• Pump ……………………………………………….. Fixed Displacement Gear

13′ electric scissor lift
