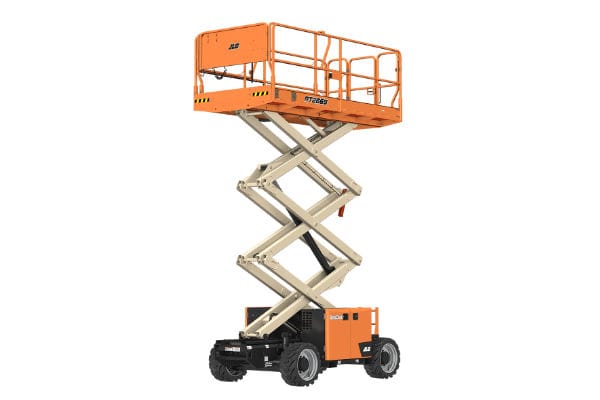

Electric scissor lift

Performance

• Platform Height (Elevated)
  • Indoor …………………………………………………………………………… 26-ft / 7.92-m
  • Outdoor ………………………………………………………………………… 26-ft / 7.92-m
• Platform Capacity
  • Indoor …………………………………………………………………….. 1,200-lb / 545-kg
  • Outdoor ………………………………………………………………….. 1,200-lb / 545-kg
• Capacity on Platform Extension
  • Indoor ………………………………………………………………………  265-lb / 120-kg
  • Outdoor ……………………………………………………………………  265-lb / 120-kg
• Number of Occupants
  • Indoor ………………………………………………………………………………………… 2
  • Outdoor ……………………………………………………………………………………… 1
• Lift / Lower Time (No Load)
  • Indoor …………………………………………………………………….. 47/44 seconds
  • Outdoor ………………………………………………………………….. 47/44 seconds
• Lift / Lower Time (Rated Load)
  • Indoor ……………………………………………………………………  54/37 seconds
  • Outdoor …………………………………………………………………  54/37 seconds
• Maximum Drive Height
  • Indoor ……………………………………………………………………. Fully Elevated
  • Outdoor …………………………………………………………………. Fully Elevated
• Weight
  • Indoor ……………………………………………………………… 5,267-lb / 2,389-kg
  • Outdoor …………………………………………………………… 5,267-lb / 2,389-kg
• Max. Ground Bearing Pressure
  • Indoor ……………………………………………………………. 122 psi / 8.6 kg/cm²
  • Outdoor …………………………………………………………. 122 psi / 8.6 kg/cm²
• Drive Speed(Lowered)
  • Indoor ……………………………………………………………….. 3 mph / 4.8 km/h
  • Outdoor …………………………………………………………….. 3 mph / 4.8 km/h
• Drive Speed (Raised)
  • Indoor ……………………………………………………………  0.5 mph / 0.8 km/h
  • Outdoor …………………………………………………………  0.5 mph / 0.8 km/h
• Gradeability
  • Indoor ………………………………………………………………………………… 25%
  • Outdoor ……………………………………………………………………………… 25%
• Max Tilt Rating – Side-to-Side (Indoor)
  • Indoor ……………………………………………………………………..  2.5 Degrees
  • Outdoor …………………………………………………………………… 1.5 Degrees
• Max Tilt Rating (Fore and Aft)
  • Indoor …………………………………………………………………….. 3.5 Degrees
  • Outdoor ………………………………………………………………….. 3.5 Degrees
• Turning Radius (Inside)
  • Indoor ……………………………………………………………………………… Zero
  • Outdoor …………………………………………………………………………… Zero
• Turning Radius (Outside)
  • Indoor ………………………………………………………………… 88-in / 2.24-m
  • Outdoor ……………………………………………………………… 88-in / 2.24-m

Power Source

• Battery ………………………………………………………………. 4 x 6V 220 amp-hr
• Charger …………………………………………………………………………….. 27 amp
• Drive …………………………………………………………… Hydraulic Front-Wheel

Tires

• Standard …………………………………………………… 16 x 5-in / 406 x 127-mm
• Brakes ……………………………………………………………….. Multi-Disc Friction

Hydraulic System

• Capacity ……………………………………………………………………… 4 gal / 15 L
• Pump ……………………………………………………… Fixed Displacement Gear

26′ electric scissor lift
