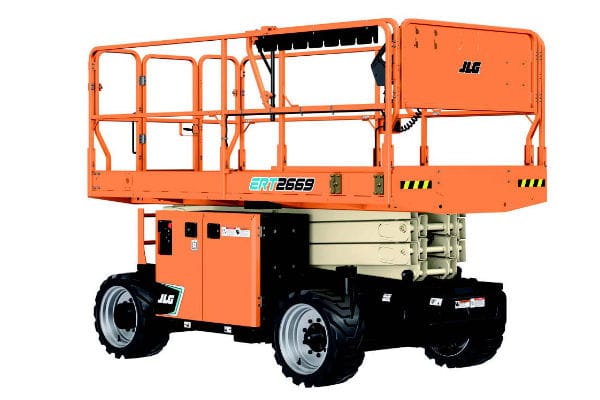

Electric rough terrain scissor lift

Performance

Platform Height–Elevated
- Indoor ……………………………………………………..……….. 26-ft 2-in / 8-m
- Outdoor ……………………………………………………..…….. 26-ft 2-in / 8-m
Platform Height–Lowered
- Indoor …………………………………………………………….. 4-ft 3-in / 1.3-m
- Outdoor ………………………………………………………….. 4-ft 3-in / 1.3-m
Platform Capacity
- Indoor ………………………………………………….……….. 1,500-lb / 680-kg
- Outdoor …………………………………………….………….. 1,500-lb / 680-kg
Capacity on Platform Extension
- Indoor ………………………………………………………….….. 300-lb / 136-kg
- Outdoor ……………………………………………….………….. 300-lb / 136-kg
Number of Occupants
- Indoor ……………………………………………………………………..………….. 4
- Outdoor ………………………………………………………………..…………….. 4
Lift / Lower Time
- Indoor ………………………………………………….………….. 37/37 seconds
- Outdoor ……………………………………………….………….. 37/37 seconds
Maximum Drive Height
- Indoor ……………………………………………………..…….. Fully Elevated
- Outdoor ………………………………………………….…….. Fully Elevated
Weight w/One Extension*
- Indoor ……………………………………………………….. 8,250-lb / 3,750-kg
- Outdoor …………………………..………………….…….. 8,250-lb / 3,750-kg
Drive Speed–Lowered
- Indoor …………………………………………………….. 3.5 mph / 5.6 km/h
- Outdoor …………………………………………..……….. 3.5 mph / 5.6 km/h
Drive Speed–Raised
- Indoor ……………………………………………………….. 0.5 mph / 0.8 km/h
- Outdoor …………………………………………………….. 0.5 mph / 0.8 km/h
Gradeability
- Indoor …………………………………………………………..…………….. 40%
- Outdoor …………………………………………………………….……….. 40%
Max Tilt Rating – Side-to-Side
- Indoor …………………………………………………….…….. 2.5 Degrees
- Outdoor ………………………………………………………….. 2.5 Degrees
Max Tilt Rating – Fore and Aft
- Indoor ……………………………………………………………..….. 3 Degrees
- Outdoor …………………………………………………….……….. 3 Degrees
Turning Radius – Inside
- Indoor ……………………………………………………….……….. 83-in / 2-m
- Outdoor …………………………………………………………….. 83-in / 2-m
Turning Radius – Outside
- Indoor …………………………………………………..….…….. 175-in / 4-m
- Outdoor ……………………………………………..………….. 175-in / 4-m
