Manlift

Performance

• Platform Height ………………………………………………………………………. 40-ft / 12.19-m
• Horizontal Outreach ……………………………………………………………….. 33-ft 3-in / 10-m
• Swing ………………………………………………………………………. 360 Degrees Continuous
• Platform Capacity (Restricted) ……………………………………………….. 1,000-lb / 454-kg
• Platform Capacity (Unrestricted) ……………………………………………….. 600-lb / 272-kg
• Platform Rotator …………………………………………………………… 180 Degrees Hydraulic
• Weight ……………………………………………………………………………. 13,640-lb / 6,187-kg
• Max. Ground Bearing Pressure ………………………………………….. 58 psi / 4.19 kg/cm²
• Drive Speed …………………………………………………………………….. 4.25 mph / 6.8 km/h
• Gradeability …………………………………………………………………………………………… 45%
• Tilt Cut Out ……………………………………………………………………………………. 5 Degrees
• Turning Radius (Inside/Outside) …………………….. 6-ft 5-in (2.0-m) / 15-ft 8-in (4.8-m)

Engine

• Dual Fuel – Kubota …………………………………………………… WG2503 61 hp / 45.5 kW
• Diesel Fuel – Deutz D2.9L4 Tier 4 Final ……………………………………. 49 hp / 36.4 kW
• Fuel Tank Capacity ………………………………………………………………….. 22 gal / 83.3 L

Tires

• Standard …………………………………………………………………………. Foam Filled, 12×16.
• Optional ……………………………………………………… Foam Filled Non-Marking, 12×16.5
  • Foam Filled, 14×17.5
  • Foam Filled, Turf & Sand, 33/16LLx16.1

Hydraulic System

• Hydraulic Reservoir ………………………………………………………………. 36 gal / 136.27 L
• Auxiliary Power …………………………………………………………………………………. 12V DC

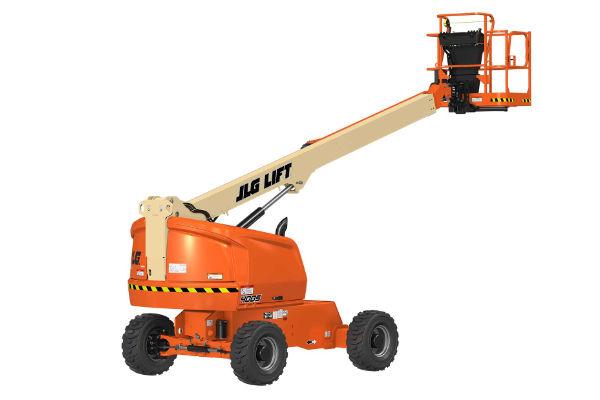

40′ straight diesel manlift
