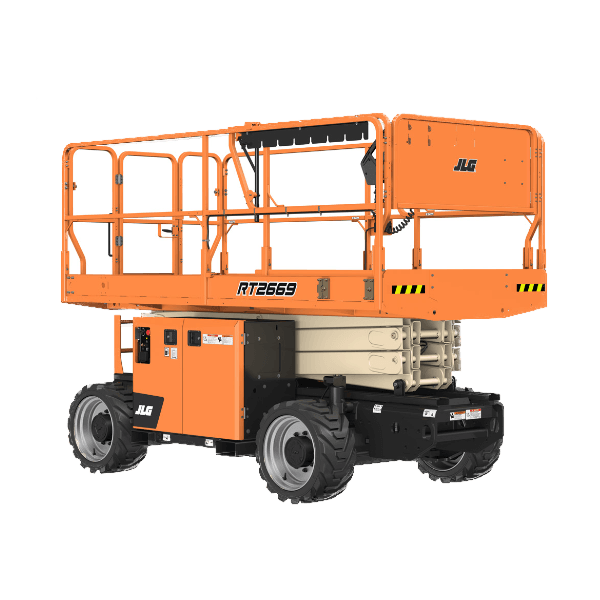

Rough terrain scissor lift

Performance

• Platform Height (Elevated) ………………………………………………. 26-ft 2-in / 8-m
• Platform Capacity …………………………………………………………… 1,500-lb / 680-kg
• Capacity on Platform Extension ………………………………………. 300-lb / 136-kg
• Number of Occupants …………………………………………………….. 4
• Lift / Lower Time …………………………………………………………….. 32 / 37 seconds
• Maximum Drive Height ……………………………………………………. Fully Elevated
• Weight w/One Extension ………………………………………………… 8,250-lb / 3,750-kg
• Drive Speed(Lowered) ……………………………………………………. 3.5 mph / 5.6 km/h
• Drive Speed (Raised) ……………………………………………………… 0.5 mph / 0.8 km/h
• Gradeability …………………………………………………………………… 40%
• Max Tilt Rating (Side-to-Side) ………………………………………… 2.5 Degrees
• Max Tilt Rating (Fore and Aft) ………………………………………… 3 Degrees
• Turning Radius (Inside) ………………………………………………….. 83-in / 2-m
• Turning Radius (Outside) ……………………………………………….. 175-in / 4-m

Engine

• Dual Fuel – Kubota WG972-GL-E4 31 hp ………………………… 31 hp / 23.2 kW
• Diesel Fuel – Kubota D1305-E4B 24.8 hp ……………………….. 24.8 hp / 18.5 kW
• Fuel Tank Capacity ………………………………………………………. 10 gal / 38 L

Tires

• Standard ……………………………………………………………………… 26 x 12-in Foam-filled

Brakes

• Rear Wheel …………………………………………………………………. Spring Applied

Hydraulic System

• Capacity …………………………………………………………………….. 13.2 gal / 50 L

26′ diesel rough terrain scissor lift
