Towable manlift

Performance

• Platform Height ………………………………………………………….. 50-ft .5-in / 15.2-m
• Horizontal Outreach  ………………………………………………………. 31-ft 6-in / 9.6-m
• Centerline to Platform Edge  ………………………………………….……… 31-ft / 9.45-m
• Swing  …………………………………………….……….. 410 Degrees Non-Continuous
• Platform Capacity …………………………………………………………… 500-lb / 227-kg
• Platform Capacity w/Rotator (Optional) ………………….………………. 440-lb / 200-kg
• Material Hook Capacity …………………………………………………… 500-lb / 227-kg
• Platform Rotator ………………………………………..…………… 90 Degrees Manual
• Jib Length ………………………………………………………..……………. 4-ft / 1.22-m
• Jib Vertical Motion …………………………………..…………. 130 Degrees (+75, -55)
• Weight …………………………………………………………………. 5,200-lb / 2,359-kg
• Leveling Capability ……………………………………………………………. 11 Degrees
• Max. Ground Bearing Pressure ……………………….…………… 31 psi / 2.18 kg/cm²
• Towing Speed Rating ………………………………….……………. 65 mph / 105 km/h
• Tongue Weight* ……………………………………………..…………… 450-lb / 204-kg
• Max Gradability …………………………………………………………………………. 20%
• Hydraulic Reservoir ……………………………………………………. 6.0 gal / 22.71 L

 Power Source

• DC Power ……………………………………………………………… 24V DC
• Gasoline Engine ……………………………………… Honda GX390 11.7hp

Tires

• Standard …………………………………………. ST225/75 R15 Pneumatic

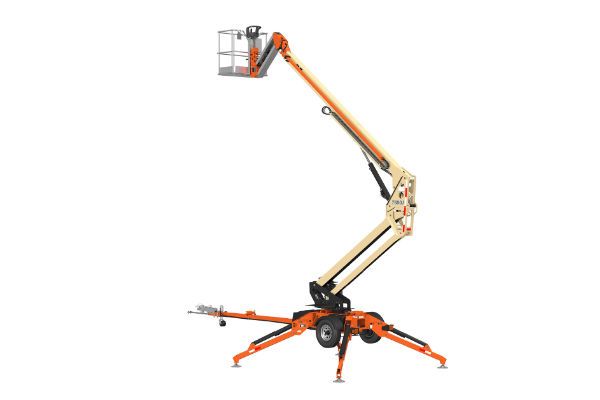

50′ Towable manlift
