Bull dozer

Engine

• Engine Model ……………………………………………….….…..………… Cat C3.6
• Power – Net ……………………………………..……………..……..………… 80 HP
• Displacement ……………………………………………………..……………. 220 in
• Net Power – 2,200 rpm – SAE J1349 …………………………………..……. 80 HP
• Net Power – 2,200 rpm -ISO 9249/EEC 80/1269 ………………………….. 80 HP
• Power Train …………………………………………..…………..…….. Hydrostatic

Weight

• Operating Weight …………………………..…………..………………… 17855Ib

Cab

• FOPS …………………………………………..………. ISO 3449:2005 Level II
• ROPS …………………………………………………………… ISO 3471 :2008

Transmission

• Drive Pumps …………………………………………………………………………………. 1
• Maximum Travel Speed – Reverse ………………….………………. 6.2 mile/h
• Relief Valve Settings ……………………………….………………….. 7033 psi
• Maximum Travel Speed – Forward …………….…………………… 5.6 mile/h
• Track Motors …………………………………………….……………………… 2

Undercarriage

• Length – Track on Ground – LGP, 762 mm (30 in) …………….…………… 89in
• Length – Track on Ground – LGP …………………………….….……..……. 89in
• Track Gauge – LGP ………………………………………….…….………….. 68in
• Shoe Width – LGP, 762 mm (30 in) …………………………….….………… 30in
• Track Gauge – LGP, 762 mm (30 in) …………………………………………. 73in
• Shoe Width – LGP …………………………………………..…….…………… 25in
• Track Gauge ……………………………………………………….……….….. 59in
• Shoe Width – Standard ……………………………………………………….. 16in
• Ground Pressure – LGP ………………………………………………….… 4.3 psi
• Ground Pressure – LGP, 762 mm (30 in) …………….…………………… 3.7 psi
• Number of Shoes – Each Side – Sealed and Lubricated Track (SALT) ……. 43
• Number of Rollers – Each Side ………………………………………………….. 6
• Length of Track on Ground ………………………………………………….. 89 in
• Number of Shoes – Each Side -Abrasion Undercarriage …………………… 38
• Ground Pressure ………………………………………………………….. 6.45 psi

Service Refill Capacities

• Final Drive – Each – LGP ……………………………………………….. 2.6 gal (US)
• Cooling System …………………………………………………………. 4.2 gal (US)
• Diesel Exhaust Fluid (DEF) Tank ……………………….…………….. 4.9 gal (US)
• Transmission – Hydraulic Tank …………………………….…………. 23.8 gal (US)
• Crankcase – With Filter …………………………………………………. 2.8 gal (US)
• Fuel Tank ……………………………………………………………….. 51.5 gal (US)

ServiceRefill Capacities

• Final Drives – Each Side ……………………………………….…….. 2.6 gal (US)

Hydraulic Controls

• Pump Output ………………………………………………….……….. 17.2 gal/min
• Relief Valve Settings ………………………………………..…………… 2988 psi

Ripper

• Type …………………………………………………………….…… Parallelogram
• Number of Shanks …………………………………………….………………… 3
• Height ……………………………………………………………..…………. 6.5 in
• Weight ………………………………………………………………..…….. 1222Ib
• Maximum Ground Clearance Under Tip ………………………….……. 17.6 in
• Maximum Digging Depth ……………………………………….……….. 13.3 in
• Overall Width ………………………………………………………..…….. 67.3 in
• Maximum Reach – Ground Line ………………………………….…….. 30.2 in

Dimensions

• BLADE: Blade Capacity (SAE) – LGP ……………………………….… 2.17 yd
• BLADE: Blade Lift Height – LGP ……………………………….……… 28.7 in
• BLADE: Maximum Tilt – LGP …………………………………….……. 17.2 in
• BLADE: Blade Width – LGP …………………………………….……… 124 in
• Ground Clearance – LGP ……………………………………….………. 13 in
• BLADE: Blade Width at Maximum Angle – LGP ……………..……. 113.1 in
• BLADE: Digging Depth – LGP …………………………………..……… 23 in
• Track Gauge – LGP ………………………………………………..….. 67.9 in
• Ground Clearance – LGP, 762 mm (30 in) ……………………………. 13 in
• BLADE: Blade Height – LGP ………………………………….……….33.8 in
• Overall Length – With Blade – LGP, 762 mm (30 in) ……………… 167.8 in
• Track Gauge – LGP, 762 mm (30 in) ………………………………….. 73 in
• BLADE: Blade Cutting Edge Angle, Adjustable – LGP ..…… 52 to 56 degrees
• BLADE: Maximum Angle (either side) – LGP ………………………. 25 degrees
• Overall Length – With Blade – LGP …………………………………… 167.8 in
• Length of Basic Dozer (without blade) – LGP, 762 mm (30 in) ……… 129.6 in
• Width of Dozer (standard shoes, no blade) – Standard ……………… 74.8 in
• Length of Basic Dozer (without blade) – Standard …………………… 129.6 in
• Length of Basic Dozer (without blade) – LGP …………………………. 129.6 in
• Width of Dozer (standard shoes, no blade) – LGP, 762 mm (30 in) .… 94.9 in
• Dozer Height – LGP ………………………………………………………. 106.9 in
• Width of Dozer (standard shoes, no blade) – LGP ………………….….. 92.9 in
• Dozer Height – LGP, 762 mm (30 in) ……………………………………. 108.9 in
• Dozer Height – Standard …………………………………………………. 108.9 in

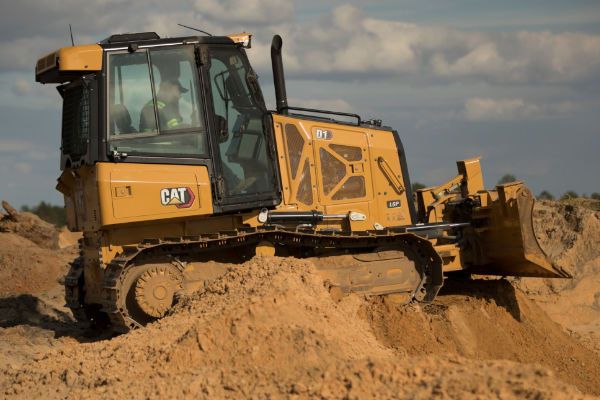

Cat D1 bulldozer with enclosed cab and limb sweeps
