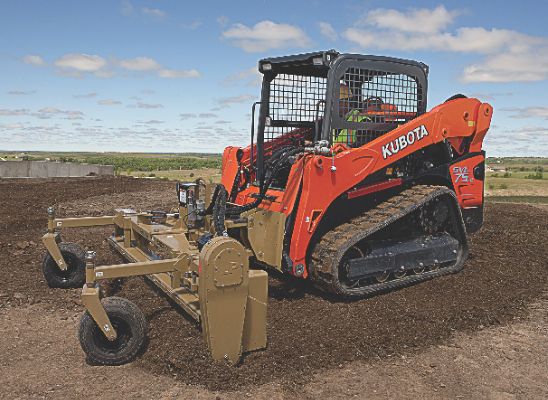

75 hp open cab skid steer

Engine

• Model …………………………………………………………………… V3307-TE5A
• Output (SAE J1995 gross) ………………………………… 74.3 (55.4) /2400 HP (kW)/rpm
• Output (SAE J1349 net) ……………………………………. 73.2 (54.6) / 2400 HP (kW)/rpm
• Displacement ……………………………………………………….. 203.2 (3331) cu. in. (cc)
• Cylinders ……………………………………………………………… 4
• Bore × Stroke ……………………………………………………….. 3.7 (94) × 4.7 (120)in. (mm)

• Aspiration ……………………………………………………………… Turbocharged

Loader Performance

• Rated operating capacity-35% tipping load ………………… 2490 (1129) lbs. (kg)
• Rated operating capacity-50% tipping load ………………… 3557 (1613) lbs. (kg)
• Tipping load …………………………………………………………… 7112 (3226) lbs. (kg)
• Breakout force
  • Bucket …………………………………………………………….. 6191 (2808) lbf. (kg)
  • Lift Arm …………………………………………………………… 4723 (2142) lbf. (kg)
  • Lift arm path …………………………………………………… Vertical

Undercarriage

• Track Width
  • Standard ………………………………………………………… 12.6 (320) in. (mm)
  • Wide ……………………………………………………………… 15.8 (400) in. (mm)

• Ground pressure
  • Standard ……………………………………………………….. 5.8 psi
  • Wide …………………………………………………………….  4.7 psi
• Track rollers (per side) ………………………………………….. 4
• Track ground contact length …………………………………. 56.5 (1436) in. (mm)
• Travel speed
  • Low ………………………………………………………………. 5.6 (9.0) mph (km/h)
  • High ……………………………………………………………. 8.6 (13.7) mph (km/h)
• Traction force ………………………………………………………… 9678 (4390) lbf. (kgf)
• Min. ground clearance ……………………………………………. 11.7 (296) in (mm)

Hydraulic System

• Aux. hydraulic flow Std. / High Flow …………………………. 19.2 (72.7) gpm

• Aux. hydraulic pressure ……………………………………………. 3185 (224.0) psi

Service Refill Capacities

• Hydraulic system …………………………………………………… 12.2 (46) gal
• Hydraulic tank ……………………………………………………….. 4.3 (16.1) gal
• Fuel tank ……………………………………………………………….. 25.0 (94.6) gal
• Operating weight (Includes operator weight 165lbs.) …….9190 (4169) lbs (kg)

75 hp open cab skid steer w/ joystick controls
