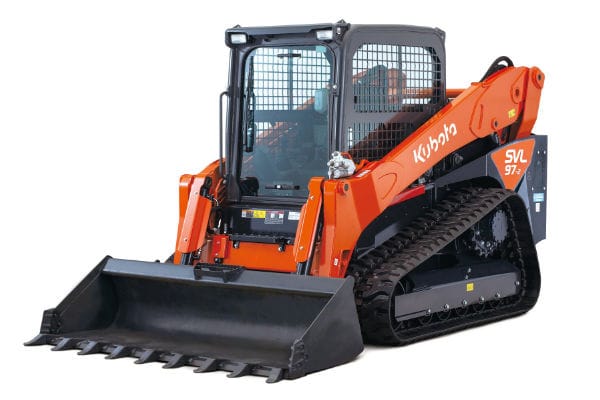

97 hp enclosed cab skid steer

Engine

• Model ………………………………………….…………….………….. V3800-TIEF4
• Gross HP …………………………………………. 96.4 (71.9) / 2400 HP (kW)/rpm
• Displacement ……………………………………………. 230.0 (3769) cu.in. (cc)
• Cylinders ………………………………………………………………….…………… 4
• Bore x Stroke ……………………………………..……. 3.94 (100) x 4.72(120) in.
• Aspiration …………………………………………..……………….. Turbocharged

Loader Performance

• Rated operating capacity-35% tipping load ……….……. 3200 (1451) lbs. (kg)
• Tipping load ………………………………………………… 9143 (4147) lbs. (kg)

Breakout force

• Bucket ………………………………………………………. 7961 (3611) lbs (kg)
• Lift Arms ……………………………………………….…… 6742 (3058) lbs (kg)
• Lift arm path ……………………………………………….………….….. Vertical

Undercarriage

• Track Width …………………………………………………….…….…… 17.7 in
• Ground Pressure ………………………………………..………….. 4.4 / 4.5 psi
• Track Rollers (per slide) …………………………………………………………. 5
• Track Ground Contact Length ………………………………..…………. 65.6 in

Travel Speed

• Low …………………………………………………………………..……. 5.0 mph
• High ………………………………………………………………………… 7.3 mph
• Traction Force ………………………………………..……………….. 12178 lbs
• Min. Ground Clearance ………………………………..………………….. 11.5 in

Hydraulic System

• Aux. Hydraulic Flow Std. / High ……………………….……… 23.1 / 40.0 gpm
• Aux. Hydraulic Pressure ………………………………………………  3553 psi

Service Refill Capacities

• Hydraulic System …………………………………………..………… 17.96 gal
• Hydraulic Tank …………………………………………………………. 10.1 gal
• Fuel Tank ………………………………………………….…………… 28.8 gal
• DEF Tank ……………………………………………………..………… 3.4 gal

97 hp enclosed cab skid steer w/ joystick controls
