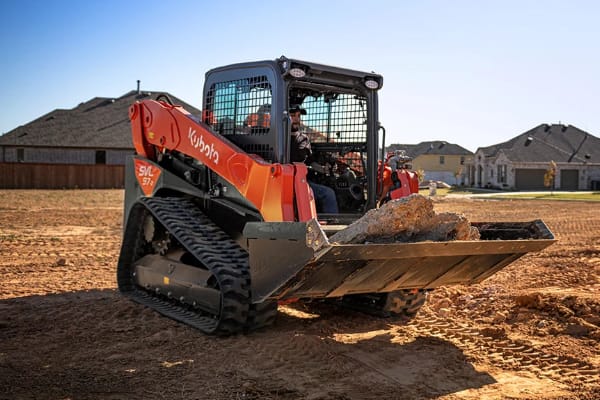

97 hp open cab skid steer

Engine

• Model ……………………………………………….. V3800-TIEF4
• Gross HP …………………………………….……. 96.4 (71.9) / 2400 HP (kW)/rpm
• Displacement …………………………………….. 230.0 (3769) cu.in. (cc)
• Cylinders ……………………………………….… 4
• Bore x Stroke ……………………………………. 3.94 (100) x 4.72(120) in.
• Aspiration ……………………………………….. Turbocharged

Loader Performance

• Rated operating capacity-35% tipping load …. 3200 (1451) lbs. (kg)
• Tipping load ……………………………………… 9143 (4147) lbs. (kg)

Breakout force

• Bucket ……………………………………………. 7961 (3611) lbs (kg)
• Lift Arms ………………………………………… 6742 (3058) lbs (kg)
• Lift arm path …………………………………….. Vertical

Undercarriage

• Track Width ……………………………………… 17.7 in
• Ground Pressure ……………………………….. 4.4 / 4.5 psi
• Track Rollers (per slide) ………………….……. 5
• Track Ground Contact Length …………………. 65.6 in

Travel Speed

• Low ………………………………………………. 5.0 mph
• High ……………………………………………… 7.3 mph
• Traction Force ………………………………….. 12178 lbs
• Min. Ground Clearance ……………………….. 11.5 in

Hydraulic System

• Aux. Hydraulic Flow Std. / High ……………… 23.1 / 40.0 gpm
• Aux. Hydraulic Pressure ………………………  3553 psi

Service Refill Capacities

• Hydraulic System ……………………………… 17.96 gal
• Hydraulic Tank …………………………………. 10.1 gal
• Fuel Tank ……………………………………… 28.8 gal
• DEF Tank ……………………………………… 3.4 gal

97 hp open cab skid steer w/ joystick controls
