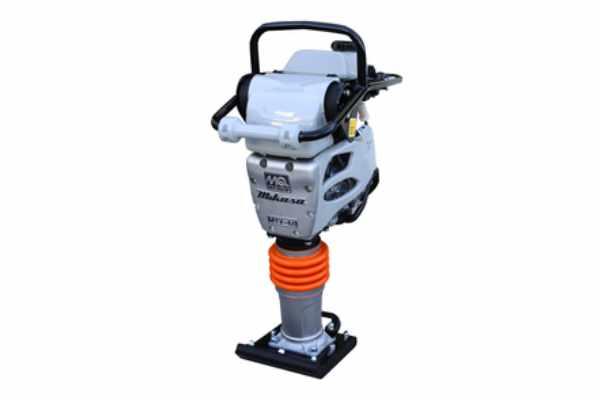

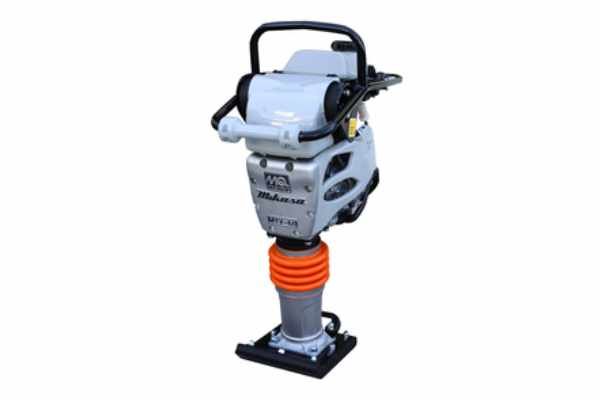

Rammer

Rammer Specs

• Overall Height …………………………………………………………… 38.8 in (985 mm)
• Overall Width ……………………………………………………………. 13.8 in (350 mm)
• Overall Length …………………………………………………………… 28.1 in (713 mm)
• Shoe Size (WxL) ………………………………………………… 10.4 x 13.4 in (265 x 340 mm)
• Fuel Tank Capacity …………………………………………………….. 2.7 qt (2.5 liters)
• Lubrication Oil Capacity ……………………………………………… 0.69 qt. (0.65 liter)
• No. of Impacts Per Second …………………………………………. 644-695 (10.7 – 11.6 Hz)
• Impact Force ………………………………………………………………. 3,060 lbf (13.6 kN)
• Impact Plate Stroke ……………………………………………………… 2-3.2 in (50-80 mm)
• Operating Weight ………………………………………………………… 141 lbs (64kg)

Engine Specifications

• Model …………………………………………………………………… Honda GX100RTKRBF Engine
• Type …….. Air-Cooled 4 Stroke, Overhead camshaft, single cylinder gasoline engine
• Piston Displacement …………………………………………………. 6.0 cu.in. (98cc)
• Max. Output ……………………………………………………………… 3.0 hp /3,600 rpm (2.2kW)
• Max. Governed Speed, No Load ………………………………… 3,800 – 4100 rpm
• Cooling System ……………………………………………………….. Air-Cooled
• Engine Oil Capacity …………………………………………………. 0.3 qt (0.28 liters)
• Fuel  ……………………………………………………………………….. Unleaded gasoline
• Lubricant for Engine ……………………………………………….. Automobile Oil; Class SE or higher
• Starting System ……………………………………………………… Recoil Starter
• Spark Plug Type …………………………………………………….. NGK CR5HSB
