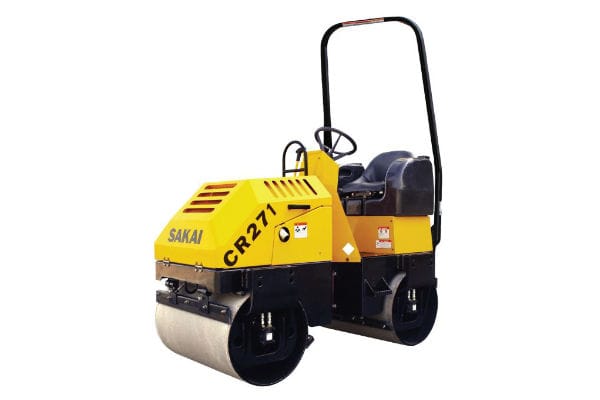

Double drum roller

MASS

• Operating Mass (with ROPS) …………………………….……. 3,440 (1,560) lbs(kg)
• Load on front axle (with operating mass) ……………………….1,435 (650) lbs(kg)
• Load on rear axle (with operating mass) ……………………….1,810 (820) lbs(kg)

PERFORMANCE

• Centrifugal force for front drum ………………………………….2,965 (13.2) lbs(kN)
• Frequency for front drum ……………………………………….4,000 (66.7) vpm(hZ)
• Amplitude for front drum ………………………………………….0.014 (0.35) in(mm)
• Dynamic linear pressure for front drum (op weight w/ROPS)..120 (218) lb/in(N/cm)
• Static linear pressure for rear drum (op weight w/ROPS) ……… 50 (90) lb/in(N/cm)
• Number of speeds ……………………………………..………………..……………. 1
• Speed range …………………………………….……………. 0-4.7 (0-7.5) mph(km/h)
• Theoretical Gradeability ……………………………………..……..…………. 25 (14) %
• Theoretical outside turning radius ……………………………………. 115 (2.9) in (m)

DIMENSIONS

• Overall length L …………………………………………..………………….79 (2,000) in (mm)Overall width W ……………………………………..………….40 (1,010) in (mm)
• Overall height (without ROPS) H ……………………..…………….62 (1,580) in (mm)
• Overall height (with ROPS) H ……………………………………….96 (2,440) in (mm)
• Wheel base L ………………………………………………………….51 (1,300) in (mm)
• Compaction width w…………………………………….…………….54 (1,380) in (mm)
• Drum width/ Drum diameter ………………………….…….35 / 22 (900 I 560) in (mm)
• Shell thickness ………………………………………….………..…….0.5 (13.5) in (mm)
• Ground clearance ………………………………………….…………….11 (280) in (mm)
• Curb clearance ………………………….………………….…………….13 (325) in (mm)
• Side clearance ……………………………………………….……….…….2 (55) in (mm)

ENGINE

• Make ………………………………………………………………………………………….Honda
• ModeI …………………………………………………………………………………..…….GX630
• EPA emission standard …………………………………….EPA Phase 3, China Stage I
• Type ………………………………..….Gasoline, air cooled, 4 cycle, 2 cylinder, V-type
• Displacement ………………………………………….…………….42 (0.688) cu. In (L)
• Rated output ………………………………………………….16 (12) / 3,600 HPlkW)/min
• Electric system battery ……………………………………….12 (12 / 36xl) V(V/AhxQty)
• Electric system alternator …………………………………………………….12 / 17 V/A

DRIVE SYSTEM

• Transmission type ……………………………………………………….…….Hydrostatic
• Drive wheel ……………………………………………………………………Both drums

VIBRATION SYSTEM

• Power transmission type ……………………………………………………….Hydraulic
• Vibrator Type ……………………………………………………….Single eccentric shaft

BRAKE SYSTEM

• Service brake …….Dynamic braking through hydrostatic drive system/ F-N-R lever
• Secondary brake (Emergency brake) ……………………….……………………….N/A
• Parking brake ……………………………….Mechanical, disc type/ parking brake lever

STEERING SYSTEM

• Power Transmission Type …………………………….…………. Hydraulic (Articulated)
• Steering/ Oscillating angle ………………………………………………….30 /0 degree

FLUID CAPAClTY

• Fuel tank ……………………………………………………………………….7.9 (30) gal
• Hydraulic oil tank ………………………………………………………..…….7.9 (30) gal
• Water sprinkler tank ………………………………………………………. 39.6 (150) gal

“36”” double drum vibratory roller”
