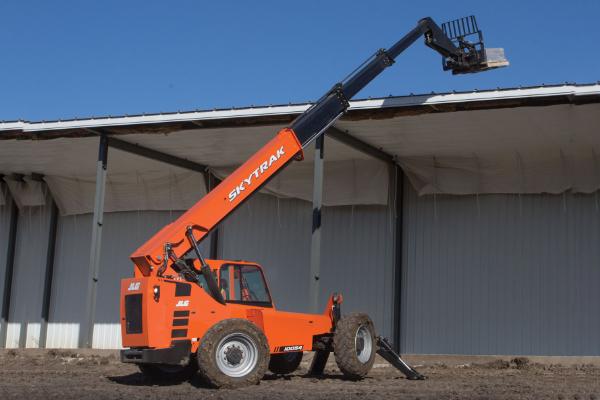

Forklift

• Rated Capacity ……………………………………. 10,000 lb
• Maximum Lift Height ……………………………… 53 ft 2 in.
• Load at Max Height ………………………….……. 4,000 lb
• Maximum Forward Reach ………………….……. 38 ft 9 in.
• Load at Max Reach ………………………………. 3,000 lb
• Frame Leveling …………………………….……. 10 degree

Lift Speed (boom retracted)

• Up ………………………………………….. 16.4 sec
• Down …………………………………….… 14.7 sec

Boom Speed

• Extended ………………………………….. 17.6 sec
• Retracted …………………………………. 15.9 sec

• Top Travel Speed (4-Speed) …………………… 20 mph

• Drawbar Pull (loaded) ………………………….. 24,500 lb

• Outside Turning Radius ……………….………. 165 in.

• Operating Weight ………………………………. 28,200 lb

Engine

• Make and Model ………………………………. Cummins QSF3.8L Tier 4 F
• No. of Cylinders ……………………………….. 4
• Displacement …………………………………. 229 cu in.
• Gross Power Basic ………………………….. 110 hp
• Maximum Torque @ 1500 rpm ……………. 348 lb-ft
• Fuel Tank Capacity ………………………………. 35 gal
• Transmission ………….. Powershift 4-speed forward and 3-speed reverse.
