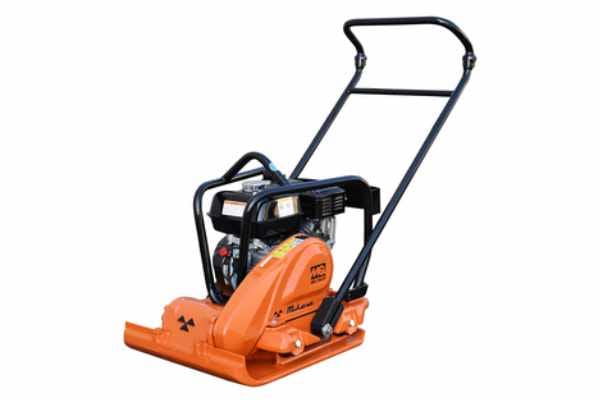

Plate compactor

Plate Compactor Specs

• Centrifugal Force ………………………………………….. 3,372 lbs. (1,530 kg)
• Vibration Frequency ……………………………………… 6,000 vpm (60 Hz)
• Traveling Speed …………………………………………… 82 ft’min (25 m/min)
• Plate Size (L X W) ……………………………………….. 19.7 x 20.7 in (.500 x .525 mm)
• Max. Area of Compaction (no extensions) ……….. 8,100 sq. ft./hr (752 sq. m/hr)
• Operating Weight MVC88VTH ……………………… 207 lbs. (95 kg.)
• Operating Weight MVC88VTHW ………………….. 229 lbs. (104 kg.)
• Water Tank Capacity ………………………………….. 13.7 qt (13.0 liters)
• Anti-Vibration Handle …………………………………. Yes
• Lubricating Oil in Vibration Case ………………… 6.7 fl. oz. (200 cc)

Engine Specs

• Engine Make …………………………………………….. HONDA
• Engine Type …………. Air-cooled 4 stroke, Single Cylinder, OHV, Horizontal Shaft Gasoline Engine
• Cylinder Bore X Stroke ………………………………. 2.7 in. x 1.8 in. (68 mm x 45 mm)
• Displacement …………………………………………… 163 cc (9.9 cu-in)
• Maximum Output ………………………………………. 4.8 HP (3.6 kW) @ 3600 RPM
• Fuel Tank Capacity ……………………………………. Approx ..8 25 U.S. gallons (3.1 liters)
• Fuel Type ………………………………………………….. Unleaded 86 Octane or Higher
• Oil Capacity ……………………………………………… 0.61 qts (0.58 liters)
• Air Cleaner ………………………………………………. Dual Filter Element I Cyclone Dual Filter Element
• Starting Method ……………………………………….. Recoil Start
• Dry Net Weight Recoil/Electric ………………….. 33 lbs (15 Kg.)
• Dimensions (L x W x H) …………………………….. 12.2 x 14.3 x 13.6 in (312 x 362 x 346 mm)

200lb Plate compactor
