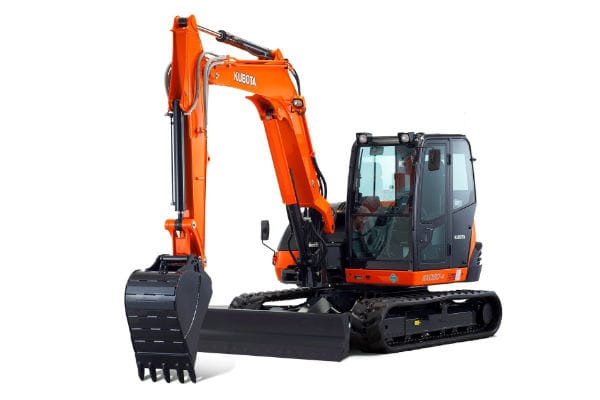

8 metric ton mini excavator

Engine

• Model ……………………………………………………………….…..  Kubota V3307-CR-TE5
• Output (SAE J1995 gross)  ………………………….  66.6 (49.7) / 2000 HP (kW)/rpm
• Output (SAE J1349 net) …………………………….  62.3 (46.5) / 20 HP (kW)/rpm
• Displacement ………………………………………….………….  203.3 cu. in. (cc)

Dimensions

• Overall length ………………………………….…………  21’1.9″ (6450) ft. in. (mm)
• Overall height  ………………………………….……………..  8’4″ (2540) ft. in. (mm)
• Overall width  ………………………………………………  7’2.6″ (2200) ft. in. (mm)
• Min. ground clearance ……………………………………………  14.0 (355) in. (mm)

Hydraulic System

• Pump capacity ……………………………………..  22.3 (84.6) Variable × 2 GPM (liter/min)
• Auxiliary hydraulic flow …………………  26.4 (100) / 14.7 (55.8) GPM (liter/min)

Max. breakout force

• Bucket ………………………………………………..…………..  14660 (6650) lbf. (kgf)
• Arm ………………………………………………………………….  8554 (3880) lbf. (kgf)

Drive system

• Travel speed
  • Low …………………………………………………………. 1.7 (2.7) mph (km/h)
  • High …………………………………………..……………. 3.0 (4.8) mph (km/h)
• Max. traction force ……………………………..……….. 15062 (6832) dbf. (Kgs)
• Tumbler distance ………………………….…………… 7’6.6″ (2300) ft. in. (mm)
• Crawler length …………………………………………. 9’6.2″ (2900) ft. in. (mm)
• Shoe width
  • Rubber …………………………..………………………… 17.7″ (450) in. (mm)
  • Steel …………………………………… 17.7″ (450) (opt. 24″ (610)) in. (mm)

Ground contact pressure

• Rubber ………………………………………….……….. 5.29 (0.372) psi (kgf/cm2)
• Steel ………………………………………..…………… 5.35 (0.376) psi (kgf/cm2)

Swing system

• Unit swing speed …………………………………………………………….. 9.8 rpm

Boom swing angle

• Left ………………………………………………………………….……….. 67 degree
• Right ………………………………………………………………………… 60 degree

Blade

• Dimensions
  • Width ……………………………….…………….  7’2.6″ (2200) ft. in. (mm)
  • Height ………………………………………………  20.1″ (510) ft. in. (mm)
• Max. lift above ground …………………….…………………  22.8″ (580) in. (mm)
• Max. drop below ground ………………………………..…….  25.2″ (640) in. (mm)
• Angle ………………………………………………………………………… 25 degree
• Hydraulic oil (reservoir I system) ……………………  19.8 (75) / 38.6 (146) gal
• Fuel reservoir ………………………………………………………… 30.4 (115) gal

 Operating weight(Including operator’s weight @165 lbs.)

• Rubber …………………………………………………. 19470 (8830) lbs. (kg)
• Steel ………………………………………….……….. 19620 (8900) lbs. (kg)
