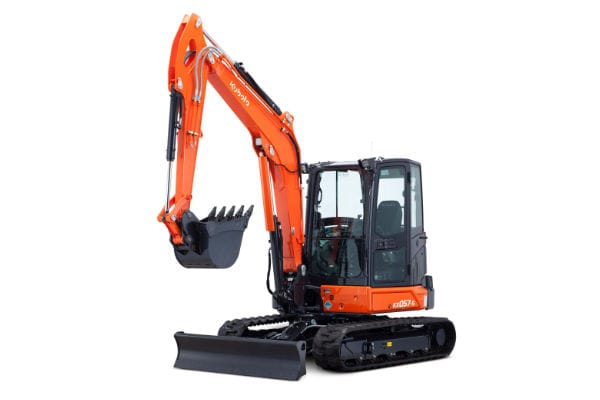

6 metric ton mini excavator

Engine

• Output (SAE J1995 gross) …….…………..…… 47.6 (35.5) @ 2200 HP (kW) @ rpm
• Output (SAE J1349 net) ……..……46.4 (34.6) / 45.5 (33.9) @ 2200 HP (kW) @ rpm
• Displacement …………………………………………………… 159.6 (2615) cu. in. (cc)

Dimensions

• Overall length ………………………….………………………. 18’1″ (5520) ft. in. (mm)
• Overall height ………………………………………………..….. 8’4″ (2550) ft. in. (mm)
• Overall width …………………………………………………………… 6’5″ (1960) ft. in. (mm)
• Min. ground clearance ……………………………………..……….. 12.2″ (310) ft. in. (mm)

Hydraulic System

• Pump capacity …. 14.8 (56.1) Variable Å~ 2 / 9.8 (37.0) Gear Å~ 1 GPM (liter /min)
• Auxiliary hydraulic flow
  • AUX 1 ……………………………………………………………………………….. 19.8 GPM
  • AUX 2 ………………………………………………………………………………… 9.8 GPM
• Max. breakout force
  • Bucket …………………………………………………….……….. 10172 (4614) lbs. (kgf)
  • Arm ………………………………………………………….………  5463 (2478) lbs. (kgf)

Drive System

• Travel speed
  • Low …………………………………………………………………… 1.7 (2.8) mph (km/h)
  • High ……………………………………………………………..…… 3.0 (4.8) mph (km/h)

• Max. traction force (Low speed) ………………….……………. 10139 (4599) lbs (kgs)
• Tumbler distance  ………………………………………………………..6’6″ (1990) ft. in. (mm)
• Crawler length ………………………………………..………….. 8’2″ (2500) ft. in. (mm)
• Shoe width …………………………………………………..…………… 15.7″ (400) ft. in.

Ground Contact Pressure

• Rubber Canopy / Cab …….…..…. 4.6 (0.32) / 4.7 (0.33) / 4.8 (0.33) / 4.9 (0.34) psi
• Steel Canopy / Cab ………………. 4.7 (0.33) / 4.8 (0.33) / 4.9 (0.34) / 4.9 (0.35) psi

Swing system

• Unit swing speed …………………………….……………………..………….. 9.2 rpm
• Boom swing angle (Left / Right) ……………………………………… 70 / 53 degree

Blade

• Dimensions
  • Width …………………………………………..………….. 6’5.2″ (1960) ft. in. (mm)
  • Height ………………………………………………………… 16.1″ (410) ft. in. (mm)

• Max. lift above ground ………………………………..…………… 17.3″ (440) in. (mm)
• Max. drop below ground …………………………………………… 15.9″ (405) in. (mm)
• Angle (Left / Right) ………………………………………….………………….. 25 degree
• Hydraulic oil (Reservoir / System) ….…………. 11.1 (41.9) / 20.3 (77.0) gal (liter)
• Operating weight (Including operator’s weight @ 165 lbs.)
  • Rubber Canopy / Cab …………………. 12346 (5600) / 12577 (5705) lbs. (kgf)
  • Steel Canopy / Cab ……………………. 12632 (5730) / 12864 (5835) lbs. (kgf)

Working Range

• Max. digging height …………………………………………… 19’0″ (5785) ft. in. (mm)
• Max. dumping height ……………………………………………13’8″ (4155) ft. in. (mm)
• Max. digging depth ………………………………………………12’9″ (3875) ft. in. (mm)
• Max. vertical digging depth ………………………………………5’4″ (1630) ft. in. (mm)
• Max. digging radius, at ground level ………………….………20’1″ (6125) ft. in. (mm)
• Max. digging radius ……………………………………………20’7″ (6260) ft. in. (mm)
• Min. turning radius
  • W/o swing …………………………………………….…… 7’11” (2410) ft. in. (mm)
  • With Swing ………………………………………………… 6’6″ (1990) ft. in. (mm)

• Min. tail turning radius …………………………………………… 4’2″ (1270) ft. in. (mm)

6 metric ton mini excavator
