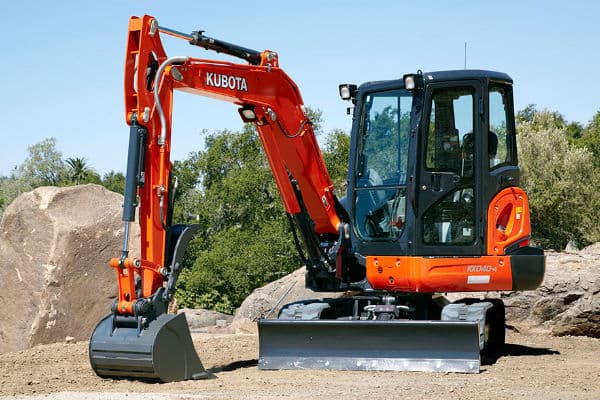

4 metric ton mini excavator

Engine

• Output (SAE J1995 gross)………….……… 40.4 (30.1) / 2200 HP (kW) / rpm
• Output (SAE J1349 net) …………………… 38.9 (29.0) / 2200 HP (kW) / rpm
• Displacement ………………………………. 111.4 (1826) cu. in.(cc)
• Overall length ………………………………. 16’8.2″ (5085) ft. in. (mm)

Dimensions

• Overall length ………………………………. 16’8.2″ (5085) ft. in. (mm)
• Overall width ………………………………… 5’6.9″ (1700) ft. in. (mm)
• Min. ground clearance …………………….. 12.99″ (330) in. (mm)

Hydraulic System

• Pump capacity ………………………………. 24.4 (92.4) GPM
• Auxiliary hydraulic flow……………………… 17.2 (65) / 9.8 (37) GPM
• Max. breakout force Bucket / Arm ………… 9535 (4325) / 4112 (1865)

Drive System

• Travel speed Low / High …………………… 1.8 (2.9) / 3.1 (5.0) mph
• Max. traction force Low Speed ……………. 9747 (4420) lbf. (kgf)
• Tumbler distance  ……………….…………  5’7.3″ (1710)  ft. in. (mm)
• Crawler length …………………………….  7’1.6″ (2175)  ft. in. (mm)
• Shoe width ………………………………… 1’1.8″ (350)  ft. in. (mm)
• Ground contact pressure
  • Rubber (Canopy / Cab) ………..…… 4.53 (31.2) / 4.68 (32.3) psi
  • Steel (Canopy/Cab) …………………. 4.61 (31.8) / 4.76 (32.8) psi

Swing System

• Unit swing speed………………………….. 9.2 rpm
• Boom swing angle (Left / Right) ………… 70 / 55 psi

Blade

• Dimensions Width………………………… 5’6.9″ (1700) psi
• Dimensions Height……………………….. 1’1.8″ (350) psi
• Max. lift above ground ………………….. 1’3.7″ (400)  ft. in. (mm)
• Max. drop below ground ……………….. 1’3.9″ (405) ft. in. (mm)

Hydraulic oil (Reservoir / System) ………….. 11.1 (42) / 19.6 (74) gal

Fuel reservoir …………………………………. 16.9 (64) gal

Operating weight (Including operator’s weight @ 175 lbs.)

• Rubber (Canopy / Cab) ………………. 9195 (4170) / 9500 (4310) lbsSteel
• (Canopy / Cab) ………………………. 9350 (4240) / 9655 (4380 lbs

4 metric ton mini excavator
