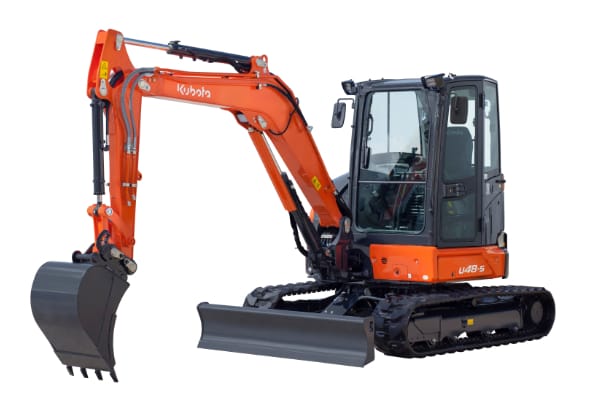

5 metric ton mini excavator

Engine

• Output (SAE J1995 gross) ………. 40.4 (30.1) @ 2200 HP (kW) @ rpm
• Output (SAE J1349 net) ………… 38.9 (29.0) / 38.5 (28.7) @ 2200 HP (kW) @ rpm
• Displacement ……………………. 111.4 (1826) cu. in. (cc)

Dimensions

• Overall length ……………………. 17’7″ (5355) ft. in. (mm)
• Overall height ……………………. 8’4″ (2550) ft. in. (mm)
• Overall width …………………..… 6’5″ (1960) ft. in. (mm)
• Min. ground clearance ……….. 12″ (310) in. (mm)

Hydraulic System

• Pump capacity ……………………………..………. 31.4 (118.8) GPM
• Auxiliary hydraulic flow AUX1 / AUX2 ………. 17.2 (65.0) / 9.8 (37) GPM
• Max. breakout force Bucket / Arm …………… 9304 (4220) / 5304 (2406) lbs.

Drive system

• Travel speed Low / High ……………………………… 1.7 (2.8) / 3.0 (4.9) mph (km/h)
• Max. traction force …………………………………….. 11993 (5440) lbs. (kgf)
• Tumbler distance ………………………………………. 6’6″ (1990) ft. in. (mm)
• Crawler length …………………………………………. 8’2″ (2500) ft. in. (mm)
• Shoe width Rubber / Steel …………………………… 15.7” (400) / 15.7″ (400) in. (mm)
• Ground Contact Pressure
  • Rubber Canopy / Cab ………………………… 4.0 (0.284) / 4.1 (0.289)
  • Steel Canopy / Cab …………………………… 4.1 (0.290) / 4.2 (0.295)

Swing System

• Unit swing speed ………………………………………. 9.2 rpm
• Boom swing angle Left / Right ……………………….. 70 / 53 degree

Blade

• Dimensions Width …………………………………………… 6’5″ (1960) ft. in.
• Dimensions Height ………………………………………….. 1’4″ (410) ft. in.

Hydraulic oil (Reservoir / System) ………………….. 10.6 (40) / 20.1 (76) gal
Fuel reservoir …………………………………………. 17.4 (66.0) gal
Operating weight (including operator’s weight @165 lbs)
       Rubber Canopy / Cab ………………………. 10848 (4920) / 11057 (5015) lbs (kgf)
      Steel Canopy / Cab …………………………. 11134 (5050) / 11342 (5145) lbs (kgs)
