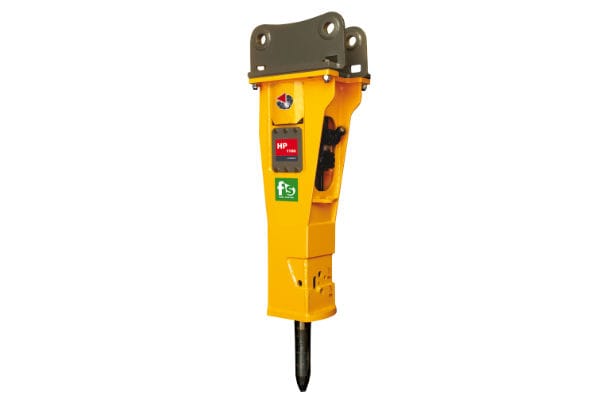

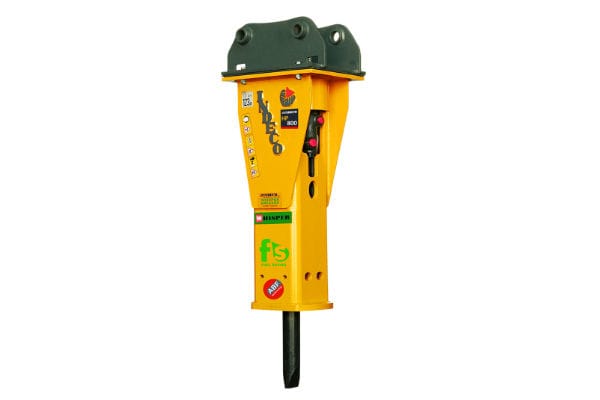

Hydraulic breaker

• Excavator Weight (possible) …………………………. 8850 ÷ 26450 lbs
• Weight of hammer when operated ………………… 980 lbs
• Steel diameter …………………………………………….. 3.15 in
• Optimal Oil Supply ………………………………………. 22 ÷ 19 gpm
• Possible Oil ………………………………………………… 24 ÷ 16 gpm
• Optimum pressure adjusted to the hammer …… 2500 psi
• Possible pressure ……………………………………… 1550 ÷ 1850 psi
• Pressure adjusted to the excavator ……………… 2500 psi
• Back pressure max …………………………………… 170 psi
• Energy class per blow ………………………………. 1100 lb.ft
• Number of blows per minute ………………………. 620 ÷ 1500 bpm
• Type of carrier
  • Compact excavator
  • Backhoe loader

1100 ft/lb hydraulic concrete breaker
