Hydraulic breaker

• Excavator weight (possible) ………………………… 6650 ÷ 19800 lbs
• Weight of hammer when operated ……………….. 710 lbs
• Steel diameter …………………………………………… 3 in
• Optimal oil supply ……………………………………… 19 ÷ 16 gpm
• Possible oil ……………………………………………….. 23 ÷ 14 gpm
• Optimum pressure adjusted to the hammer ….. 1650 ÷ 1750 psi
• Possible pressure …………………………………….. 1550 ÷ 1800 psi
• Pressure adjusted to the excavator …………….. 2400 psi
• Back pressure max …………………………………… 2400 psi
• Energy class per blow …………………………..….. 800 lb. ft
• Number of blows per minute ……………………… 780 ÷ 1720 bpm
• Type of carrier
  • Compact excavator
  • Miniloader
  • Backhoe loader

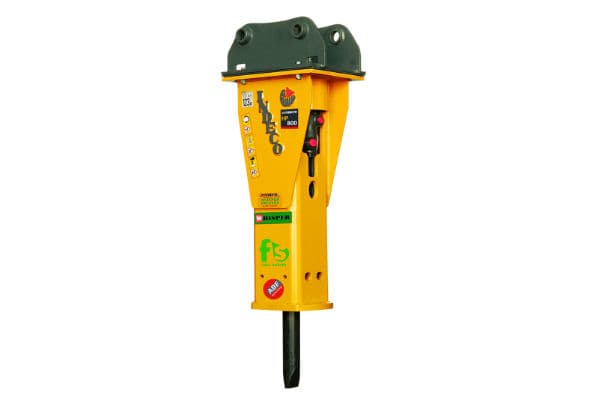

800 ft/lb hydraulic concrete breaker
