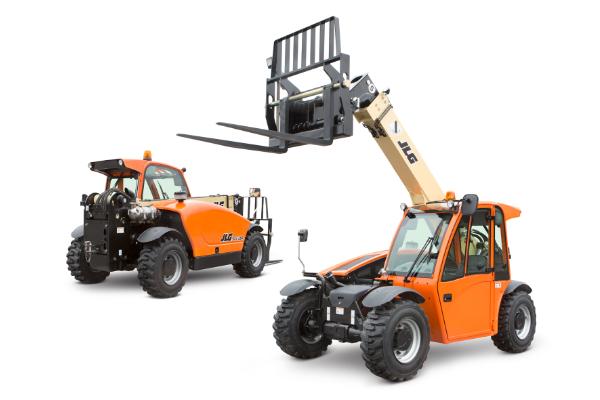

5500 lb Reach Forklift

Performance

• Rated Capacity  ………………………………………………….………. 5,500 lb
• Maximum Lift …………………………………………….………………… Height 18 ft 4 in.
• Load at Max Height …………………………………………………..……. 4,400 lb
• Maximum Forward Reach ………………………………………….……… 10 ft 11 in
• Load at Max Reach ……………………………………………….……..….. 1,850 lb

Lift Speed (boom retracted)

• Up ………………………………………………………………..……………… 6.8 sec
• Down ………………….…………………………………………………………. 4.6 sec

Boom Speed

• Extended ……………….……………………………………………………….. 6.7 sec
• Retracted ……………………………………………………………….…..…… 3.8 sec

• Top Travel Speed (4-Speed) ……………………………………………….. 15 mph

• Drawbar Pull (loaded) …………………………………………..……….….. 8,700 lb

• Outside Turning Radius  …………………………………………………..….127 in

• Operating Weight ………………………………………………..…………… 11,000 lb

Standard Specifications

• Engine
  • Make and Model ……………………………………………….………. Deutz TD 2.9 L4
  • No. of Cylinders ………………………………………………….…….. 4
  • Displacement ………………………………..……………….…. 177 cu in.
  • Gross Power Basic …………………………….…………..…… 74 hp 55 kW

• Maximum Torque @ 1800 rpm ………………………..……….…… 192 lb-ft 260 Nm

• Fuel Tank Capacity ……………………………………………….…… 24 gal

• Transmission … Hydrostatic

• Steering 4-Wheel …. Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front.
