Forklift

General Data

• Power source …………………………………………………………………. Diesel
• Fuel capacity …………………………………………………………………. 18 Gal
• Load capacity in lbs ……………………………………………………… 8,818 lbs
• Service weight in lbs …………………………………………………….13,272 lbs
• Operator position …………………………………………………………… Seated
• Mast type …………………………………………………… Full free 3-stage mast
• Towing coupling design …………………………………….. Drop pin in the back

Performance

• Lift speed (Full Load) ……………………………………………. 13 Inch/Second
• Drop speed (Full load) ………………………………………. ≤23.6 Inch/Second
• Mast tilt angle ………………………………………………………………… 6°/6°
• Top speed forward …………………………………………………………. 6.5°/s
• Top speed back …………………………………………………………….. 15°/s
• Minimum turning radius …………………………………………………….. 106″
• Max grade with load ………………………………………………………… 20%
• Max grade without load …………………………………………………….. 20%

Weight

• Total weight ………………………………………………………….. 13,272 lbs
• Front axis load (Empty) ……………………………………………… 4,625 lbs
• Back axis load (Empty) ……………………………………………… 6,896 lbs
• Weight distribution full load front ……………………………………… 89.10%
• Weight distribution full load rear ……………………………………… 10.90%
• Weight distribution without load front ………………………………… 60.10%
• Weight distribution without load rear …………………………………. 59.90%

Tires

• Tire type …………………………………………………………………… Solid
• Number of wheels front/ rear ……………………………………………… 2/2
• Tire dimensions front ……………………………………………… 250-15-16
• Tire dimensions rear ……………………………………………… 6.50-10-10
• Tire pressure front ……………………………………………………… NONE
• Tire pressure rear ………………………………………………………. NONE
• Track width between tires front ………………………………………… 46.5″
• Track width between tires rear …………………………………………. 42.5″
• Brake type parking …………………………….….. Mechanical-Hand Lever
• Brake type foot ………………………………………………….. Drum Brake

Engine

• Rated output ………………………………………………… 65hp / 2600rpm
• Combustion system …………………………………………. Direct injection
• Lubrication system ……………………….. Fully forced pressure feed type
• Displacement …………………………………………………………. 2.392L
• Number of cylinders/ cubic capacity ……………………………………… 4
• Max torque at engine Speed ………………………… 158 ft lbs / 1600rpm
• Battery voltage v/capacity …………………………………….. 12V/120 Ah
• Noise level in decibels ………………………………………………… 92dB

Exterior Specifications

• Lift height ………………………………………………………………… 189″
• Height from head guard …………………………………………………. 83″
• Lateral fork adjustment min/max ……………………………………. 16-47″
• Length of Forks …………………………………………………………… 48″
• Distance from front of forks to rear ……………………………………. 162″
• Overall width ……………………………………………………………… 56″
• Mast Height (Lowered) ………………………………………………….. 90″
• Tow coupling height ………………………………………………….….. 13″
• Max height extended top of fork ……………………………………… 235″
• Front wheel distance from center ……………………………………… 39″
• Rear wheel distance from center ……………………………………… 43″
• Distance from wheel center to axis …………………………………… 75″
• Center front tire to fork face …………………………………………… 19″
• Center rear tire to rear …………………………………………………. 19″
• Ground clearance to frame no load …………………………………… 6″
• Mast tilt angle front/ rear …………………………………………….. 6°/6°
• Minimum turning radius ……………………………………………… 106″

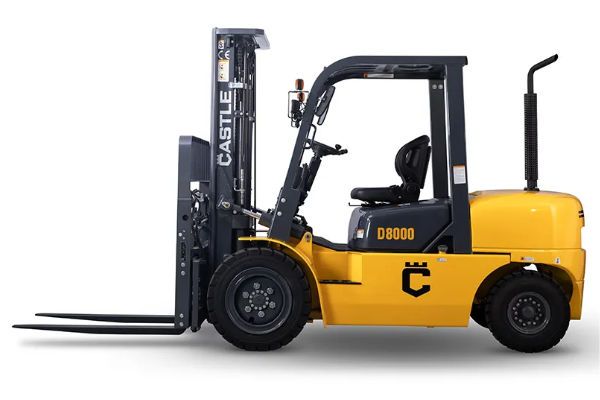

8000lb diesel industrial forklift
