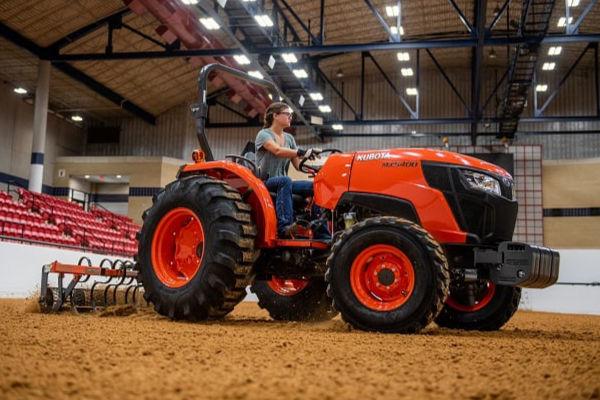

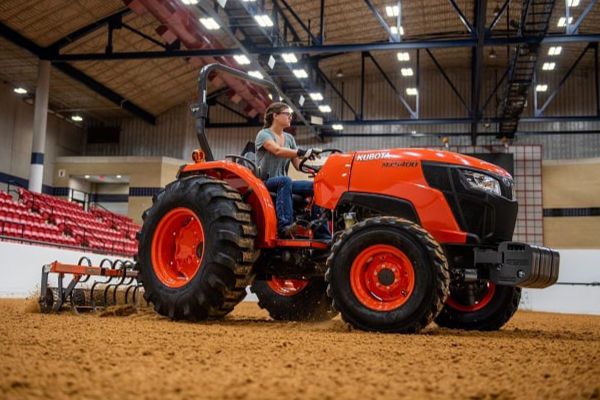

50-59 HP tractor w/ open cab

Engine

Type (Make: KUBOTA)
Engine gross SAE J1995 power
- 2wd/4wd Gear Drive Trans: ………………………….. 55.5 (41.4) HP (kW)
- 4wd HST: …………………………………………………….. 57.0 (42.5) HP (kW)
Engine net SAE J1349 power
- 2wd/4wd Gear Drive Trans: …………………………. 53.0 (39.5) HP (kW)
- 4wd HST: …………………………………………………….. 53.8 (40.1) HP (kW)
PTO power ……………………………………………………………… 46.5 (34.7) HP (kW)
No. of cylinders/ Aspiration ……………………………………….. 4/ Turbocharged
Total displacement ………………………………………………….. 148.6 (2434)
Rated speed ……………………………………………………………… 2700 rpm
Fuel tank capacity …………………………………………………….. 11.9 gal
Air cleaner ………………………………………………………………… Dry-Dual Element
Alternator (ROPS / CAB) ……………………………………………. 45 / 60 amp

Transmission

No. of speeds ………………………………………………………….. 8F/8R
Main gear shift (4 speeds) (ROPS /CAB) …………………….. Partially synchronized (3rd & 4th)
Shuttle ……………………………………………………………………… Synchronized
Main clutch ……………………………………………………………… Dry single plate
Brake ………………………………………………………………………. Mechanical wet disc
Differential lock ………………………………………………………. Rear standard (mechanical)

PTO

PTO type ………………………….. Live independent, hydraulic PTO with PTO brake, wet clutch
Speed ……………………………………. @540 rpm
Hydraulic
Pump capacity (main) …………………………………………………………… 9.5 (35.8) gpm
Power steering …………………………………………………………… 4.9 (18.6) gpm
3-point hitch …………………………………………………………… Category I & II
Control system …………………………………………. Position (std), Draft (opt) 2310 (1050) lbs. (kg)
No. of remote valves …………………………………………………………… Maximum 3 (opt)

Tires
