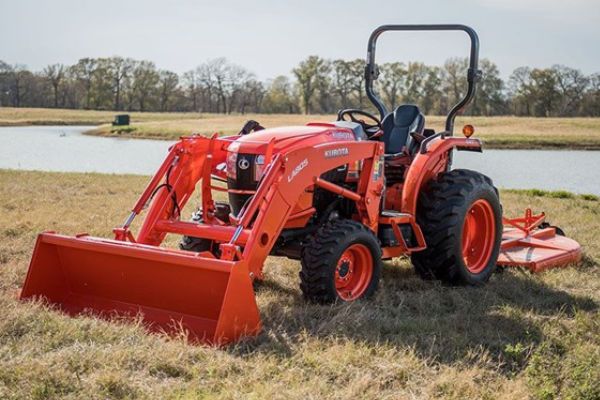

30-39 HP tractor w/ open cab

Engine

• Type …………………. Liquid-cooled, 4-cycle multi valve diesel, Naturally Aspirated
• Number of Cylinders ……………………………………………………..……. 4
• Bore and Stroke ………………………. 3.43 in. x 4.03 in. (87 x 102.4 mm)
• Total Displacement ……………………. 148.5 cu.in. (2.434 L)
• Engine horsepower, gross ………………………. 42.0 hp @ 2700 rpm
• Engine horsepower, net ……………………………. 40.0 hp @ 2700 rpm
• PTO horsepower ……………………………………. 34.0 hp @ 2700 rpm
• Maximum torque ……………………..……… 96.6 ft. lb. @ 1500  ̴1700 rpm
• Fuel usage ………………….. 2.61 gph @ max. PTO load (calculated, actual may vary)
• Injection pump …………………….….. Electronic CRS (Common Rail System)
• Throttle ……………………………..…. Hand and foot operated throttle
• Exhaust ……………. Underhood exhaust system, DPF muffler, forward exhaust
• Air cleaner element ……………………. Dry paper, dual element
• Battery ………………………………… 12 V, CCA: 582 A, RC: 133 min.

Capacities

• Fuel Tank ……………………………………………….. 13.5 U.S. gals.
• Engine crankcase (with filter) ……………………. 8.7 U.S. qts.
• Engine Coolant …………………………………..…. 7.9 U.S. qts.
• Recovery Tank ……………………………………… 0.4 U.S. qts.
• Transmission case ……………………………… 11.4 U.S. gals.

PTO

• PTO clutch ……………….. Live independent with hydraulic clutch
• Rear PTO …………………. SAE 1-3/8, 6 splines
• Revolution …………………. 540 rpm @ 2550 engine rpm
• Mid PTO (Optional) …………… 2000 rpm @ 2577 engine rpm

Drawbar

• Type …………………………….. Fixed (standard) or Swinging (optional)
• Max. drawbar load @ hitch …………………………………… 1,433 lbs.
• Maximum tow rating ……………………………………………. 5,500 lbs.

Drivetrain

• Front Axle …………… 4WD: Bevel gear front axle, non-adjustable tread spacing
• Clutch …………………………………………….…. Dry type single stage

Transmission Type

• Gear
  • Control Type ……………………………….. Manual H-pattern gear shift
  • Speeds ……………………………….…….. 8Fx8R
• Glide Shift
  • Control Type ………………………….….. Manual in-line gear shift
  • Speeds ……………………………….….. 12Fx8R
• Throttle ……………………………….……… Hand and foot operated throttle
• Creep Speed ………………….…………… Optional
• Cruise Control ………………………..………. N/A
• Steering ………………………………..…….. Hydrostatic power steering
• Differential Lock ………………………..……. Rear differential lock standard
• Brakes ………………………………….….. Wet disc type, mechanically activated

Hydraulic System

• Type ……………………………………………. Open center, tandem pump – gear type
• Hydraulic pump output ………………………… 9.8 gpm
• Power steering pump output …………………. 4.9 gpm
• Total hydraulic flow ………………………..… 14.7 gpm
• Number of remote valves
  • Optional, up to 3 with double-acting valve or float detent valve options, any position
• Hydraulic filter(s) …………………………. 1 spin-on hydraulic filter with magnetic pickup

Three-Point Hitch

• Category ………………………………….…… SAE Category 1
• Control Method …………………….……… Position control
• Draft Control ………………………………. Optional
• Lift Arms …………………. Telescoping lower link ends and stabilizers
• Right link adjustment ………………………… Turn Buckle
• Lift Capacity @ Lift Points …………………….. 3,858 lbs.
• 24″ Behind Lift Points …………………….…… 2,756 lbs.

Dimensions

• Height to top of ROPS or Cab …………………..…. 97.6 in.
• Overall Length
  • w/o 3-point hitch …………………………………… 121.5 in.
  • with 3-point hitch ………………………………… 129.5 in
• Overall width (min. tread) ……………………………… 66.5 in.
• Wheelbase ……………………………………………… 74.6 in.
• Ground Clearance …………………………………….. 15.9 in.
• Turning Radius ………………………………………… 8.9 feet
• Base Weight ……………………………………………. 3,737 lbs.
