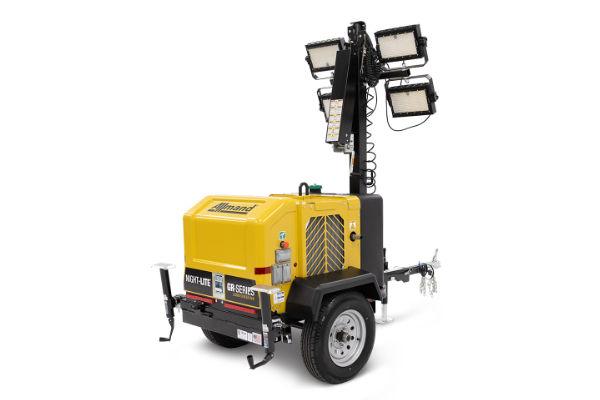

Light tower

• Engine Brand ……………………………………………………………………..… Kubota
• Engine Model ……………………………………………………………………… D1005
• Output@- Rated Speed (1,800 RPM) HP ………………………………………… 11.6
• Engine Prime Power (kW) ………………………………………………………………. 6
• Engine Tier ………………………………………………..…………………. Tier 4 Final
• Fuel Capacity ……………………………………….……….…….……. 63 (238) gal (L)
• Light Type. 350W LED (Standard) ……….. SMD Style LED, 5000° K Color Temp
• LED Wattage (per lamp) ………………….……………………..…………………… 350
• LED Lumens (per lamp) …………………….…………………………..……… 57,140
• LED Lumens (total) ……………………………….………………..… 228,560 – 4 Lights
• Operating Time – using four 350W LED light fixtures (hrs) ………………………. 214
• Light Type – 250W LED (Optional) ….…. SMD Style LED – 5000° – K Color Temp
• LED Wattage (per 250W lamp) ………………………………………………….…….. 250
• LED Lumens (per 250W lamp) …………………………………………………..… 38,081
• LED Lumens (total – 4-250W) ………………………………..……. 152,324 – 4 Lights
• Operating Time – using four 250W LED light fixtures (hrs) ………………….….. N/A
• Transport Height (Mast Lowered) – in (mm) ………………………….…….. 99 (2,502)
• Operating Height (Mast Raised) – in (mm) ………………………..……… 276 (7,010)
• Transport Width – in (mm) ………………………………………………..……… 51 (1,283)
• Operating Width (Outriggers Deployed) – in (mm) …………………..…….. 98 (2,489)
• Transport Length – in (mm) ……………………………………………..……… 107 (2,724)
• Operating Tower Wind Speed Rating – MPH (km/h) ……………………..…… 65 (105)
• Trailer Weight – lbs (kg) ……………………………………………………………. 1,790 (812)
• Trailer GVWR – lbs (kg) ……………………………………………………………. 2,000 (907)
• Number of Units on 48 flatbed ………………………………………………………………….. 18
• Number of Units on 53 flatbed ………………………………………………………………….. 20

4000 watt towable light plant w/ electric winch and 6kw generator
