Air compressor

Compressor

• Rated Delivery ………………………………….……….. 185 CFM (5.2 m ³/min)
• Rated Operating Pressure ……………………………….…… 100 psig (6.9 Bar)
• Operating Pressure Range………………………….. 70-125 psig (4.9 – 8.6 Bar)
• Air Discharge Outlet Size …………………………………..…………… 3/4” NPT
• Air Discharge Outlet Quantity…………………………………………………….. 2
• Estimated Weight, Serviced ……………………..……………. 2200 lbs (997 kg)
• Dimensions L x W x H in” (mm) …….. 126.5 x 63.5 x 63 (3213 x 1612 x 1600)

Engine

• Make & Model ………………………………….…….. Kohler D1903 Tier 4 Final
• Idle Speed ………………………………………………….………….. 1650 RPM
• Fuel Tank Capacity ………………………………………..…….. 30 gal (113.5 L)
• Horsepower @ rated RPM ………………….………………. 48.8 @ 2600 RPM
• Full Load Speed …………………………………………..………….. 2400 RPM

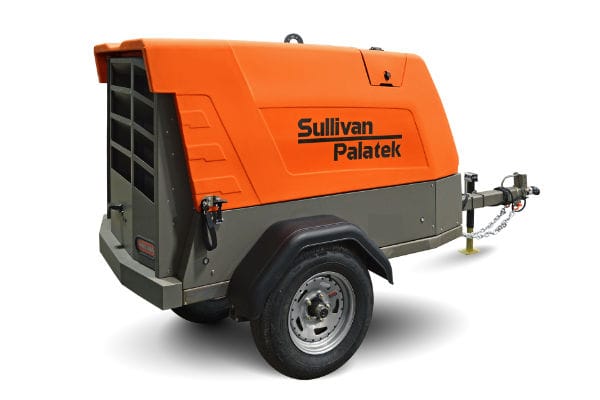

185 cfm diesel air compressor
