Horsepower range ……………………………………………………… 50 – 160 hp (37.3 – 119.3 kw)
Gearbox horsepower ………………………………………………….. 540 rpm or 1000 rpm
- 160 hp (119.3 kw) Divider and 130 hp (96.9 kw) Center & Wings
Gearbox lubrication ……………………………………………………. Gear Lube 80-90W EP
Gearbox oil capacity …………. Splitter: 3.5 pints (1.66 L); Center deck & Wings: 6 pints (2.84 L)
Cutting capacity ……………………………………………………….. 3″ (7.6 cm)
Machine weight
- Total weight ………………………………………………………………… 4,380 lbs (1986.7 kg)
- Tongue weight …………………………………………………………….. 1,594lbs (723.0 kg)
Blade tip speed
- At 540 rpm Center Blades = 15,268 FPM (77.6 mps) & Wing Blades = 15,000 FPM (76.2 mps)
- At 1000 rpm Center Blades = 15,578 FPM (79.1 mps) & Wing Blades = 14,620 FPM (74.3 mps)
Hitch types ……….. Swivel Clevis Hitch, LP Performance Hitch, Bar-Tite Hitch, Ball Hitch, or Pintle Hitch
Hitch jack …………………………………………………………………. Standard (7,000 lbs) (3175.1 kg)
Signal lights ……………………………………………………………… LED (light-emitting diode)
7 Pin connector ……………………………………………………… SAE J560 pin configuration
Cutting width …………………………………………………………. 15’-0″ (4.57 m)
Overall width …………………………………………………………. 15’-10″ (4.83 m)
Transport width with 21″ tires …… 10’-3″ (3.12 m) (Single acting fold option) 7’-3″ (2.21 m) (Dual acting fold option)
Overall length ………………………………………………… 16′-3″ (4.95 m) (With center deck raised fully up)
Deck height …………………………………………………… 12″ (30.5 cm)
Cutting height ………………………………………………… 1-1/2″ – 16″ (3.8 cm – 40.6 cm) (Varies by tire option)
Lift hydraulics ………………………………… 3″ x 8″ hydraulic cylinder, hoses, fittings & stroke control spacers
Wing hydraulics ……………………………… 2 1/2″ x 12″ hydraulic cylinders, hoses & fittings
Wing flex while operating:
- Max. 20 degrees down, can float up as needed as long as the wheel(s) are still on the ground
Wing transport protection ……………………………….. Wing Transport Lock Pins
Deck material thickness …………………………………… 10 Gauge (3.4 mm)
Side skirt thickness ………………………………………….. 1/4″ (6 mm) Steel
Skid shoes
Wing Deck: ………………………………………………………. 1 Replaceable skid shoe per wing
Center Deck: ……………………………………………………. 2 Replaceable skid shoes
Blades – 6 (2 per carrier)
- 1/2″ x 4″ (1.3 cm x 10.2 cm) Heat-treated, free-swinging alloy steel with uplift
Blade overlap …………………………………………………… 6″ (15.2 cm)
Blade bolt ………………………………………………………… Keyed with hardened flat washer & locknut
Stump jumper / blade holder
- 3/16″ (5 mm) Thick round dish shaped pan, reinforced with 1″ x 4″ (2.5 x 10.2 cm) blade bar
Front & rear guards …………………………………………… Optional single row chain or dual row chain
Input driveline 540 & 1000 rpm …. Cat. 6 with constant velocity u-joint with or without overrunning clutch
Intermediate driveline ………………………………………. Standard – Category 4 with slip-clutch
Wing drivelines ……………………… Standard – Category 4 with slip-clutch or Category 5 with slip-clutch
Wheel options
- 21″ or 26″ Laminated tires
- 25.5″ New foam filled tires
- 25.5″ New 20-ply pneumatic tires
- 29″ Used aircraft tires
Number of wheels
- 4 – Wheels: Two on transport axle and one on each wing axle
- 6 – Wheel option: Four on transport axle and one on each wing axle
- 8 – Wheel option: Four on transport axle and two on each wing axle
Transport axle …………………………………………….. Spring-cushioned on center transport axle
Hubs ………………………. Cast iron five-bolt hubs with tapered roller bearings and 1 3/4″ (4.4 cm) shafts
LP Performance hitch & Bar tite hitch pivot shaft diameter …………………………………….. 2 1/4″ (5.7 cm)

A-frame tongue ………………………………………………………. 5″ x 3″ (12.7 cm x 7.6 cm) rectangular tubing

15′ Bat wing rotary cutter

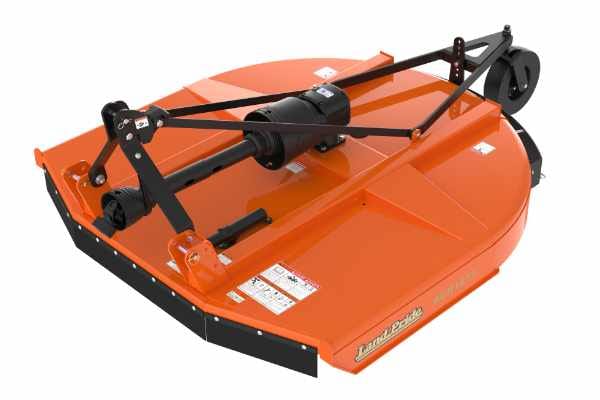

6′ rotary cutter

Call for Pricing
